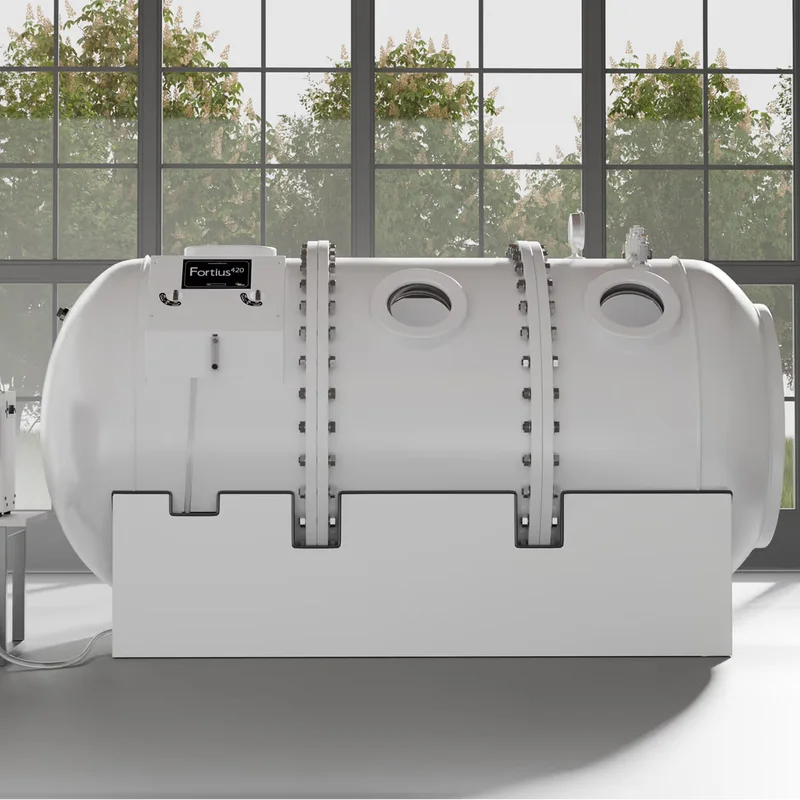

Oxyhealth – Fortius 420-EXP Hyperbaric Oxygen Chamber FDA Cleared, Made in USA-Quality Guarantee

Description

All Oxyhealth chambers are FDA certified, made in the USA & come with a 5 year warranty!

Our second largest and most versatile hard shell hyperbaric chamber Fortius420 – EXP is a market favorite. It comes with the capability of treating patients in up to 3.0 ATA (29 psi) operating pressure. This chamber boasts a considerable 42″ diametric interior and is 64 inches in length. However, despite its large size, the Fortius420 – EXP has been designed to fit in most offices and clinics. The hybrid alloy hyperbaric chamber comes fitted with mirrored controls on the interior and exterior.

To make the treatment safe for the patient and cost-effective for the physicians, this particular chamber can release 100% oxygen at up to 3.0 ATA through a hood assembly system. OxyHealth prioritizes fast delivery and can ship and install the chamber within 14 business days. The Fortius420 – EXP has been designed keeping in mind the safety protocols and high industry standards to ensure that the chamber stays functional for years to come.

HYPERBARICS MADE EASY- SPLIT CHAMBER:

SPECIFICATIONS:

FLANGE:

• Thickness : .75 in
• Grade: 70
• Type : 516-70 Hybrid Alloy
• Tensil Strength : 70,000 lbs (31.751 kg)
• Hard Shell Chamber: approx. 1100 lbs when assembled.

DIMENSIONS:

• Length: When bolted together it is 64 inches in length (2 – 32 inch sections)
• Additional center section is available upon request to create a 3 piece hard shell chamber (adds an extra 32 inches in length creating a total of 96 inches in length)
• Shell Diameter: 42 inch
• Door Diameter: 28 inch

CLEAN AIR COMPRESSOR

• Double-headed, oil-less, 1/3 hp compressor with dual intake filters with cooling radiator
• High-efficiency inline air filtration that filters air to 0.01 microns
• Analog pressure gauge

Includes

What do you get?

• Fortius 420®-EXP Hyperbaric Chamber – 2 or 3 piece
• 1.3, 1.5, 1.75, 2.0, 2.2 ATA Valves
• Analog External PSI Gauge
• 10ft Medical Grade Hyperbaric Air Intake Hose
• 10 ft Medical Grade Oxygen Intake Hose
• 110V Dual Stage Compressor, Grade D Air Filtration
• Medical Grade Organic Custom Contoured Hyperbaric Mattress w/ Anti-slip
• Internal & External Air Release Valves
• Internal & External Oxygen Flow Regulators
• Oxygen Tank Regulator
• Sound Suppression System
• Compressor Remote System
• Two Mattress Covers
• Two Masks Adapters
• Five Oxygen Masks
• User Manual
• Training Course

WARRANTY

5 Year Warranty. Warranty includes the chamber and compressor. Normal wear and tear are not included in the warranty. For more information please contact The Airpuria Team.

SHIPPING

FDA CERTIFIED

FDA Statement & Legal Notice

FDA 510(k) Clearance #K041007 for Fortius 420

CFG License for Fortius 420

MADE IN THE USA

International Hyperbarics Association Safety Standards

PRESCRIPTION OR DOCTOR’S NOTE

To purchase an Oxyhealth Hyperbaric Oxygen Chamber, a prescription or doctor’s note is required. You can either upload the document above or send it to sales. Submit your doctor’s note within 2 weeks of your purchase. If you have any questions or need to speak to one of our licensed doctors, contact The Airpuria team for assistance.

Financing Options For Oxyhealth Chambers

• If you’re a consumer: Click Here
• If you have a business: Click Here

Oxyhealth Brief Video

YOUR SAFETY IS ALL THAT MATTERS:

OxyHealth continues to have the industry’s best safety record that extends throughout our product line. Patient safety during treatments is the principal assurance that we provide to all of our users. All chambers are evaluated by experts through a vigorous multi-point inspection and are certified to provide patients with safe and long-lasting functionality. Your safety, health and well-being remain our highest priority.

MATERIALS:

All of our chambers are constructed and assembled in the U.S.A. with powerfully durable 44 oz. double-sided urethane. Dual zipper and control valve technology provides patients with the ability to self-treat. Tamper-proof redundant pressure regulators and angled air-in port maintains consistent circulatory air flow. All chambers are made from non-toxic materials and are entirely equipped with medical grade components.

WINDOWS & FLANGES:

Our vividly clear, multiple viewing windows are exceptionally strong and illuminate the interior of the chamber with room light. All windows are constructed using a single-mold design to promote remarkable safety and the seal’s durability throughout years of treatments. The flanges on our chambers are double reinforced for uncompromising longevity and peace of mind.

INTERNAL FRAME:

Our steel frames are powder coated using non-toxic, food grade finish. The frame maintains the integrity and shape of the chamber when deflated, providing added convenience when entering and exiting the chamber.

SEALING:

All chambers in our portable line are expertly sealed utilizing cutting-edge dielectric sealing technology. No chemicals or glues are ever used to seal our chambers.

The OxyHealth Difference

Since our inception, OxyHealth has focused on the design and manufacture of high-quality, consistently safe portable hyperbaric chambers. Our products are utilized by thousands of physicians, professional athletes, wellness centers, and individuals seeking access to hyperbaric technology. Designed with ease of use and durability in mind, OxyHealth chambers have helped foster a cutting-edge trend in hyperbaric equipment design and accessibility.

SAFETY

More physicians, professional athletes and families entrust their recovery to OxyHealth chambers. We are confident that every chamber issued has the highest safety rating in the industry. All chambers meet or exceed federal safety specifications and are designed to maintain long-lasting functionality.

EXPERIENCE

We have over 28 years of experience setting the gold standard of superior hyperbaric chambers in the industry. As we craft professional expertise into every chamber, we strive to remain unmatched. Our dedication has led our team to supply chambers for numerous projects, including for the US Special Forces and the International Olympic Committee.

CUSTOMER SUPPORT

We care deeply about our customers and strive to remain accessible to answer all of your questions. A dedicated OxyHealth representative will personally handle all inquiries about your OxyHealth chamber.

18,000+ In Use World Wide

Over the past 28 years, we’ve distributed over 18,000 hyperbaric chambers, more than other providers combined. OxyHealth remains the global leader in the hyperbaric community.

We offer a variety of sizes within our chamber lineup that meet the needs of every practice, clinic, or home. OxyHealth has remained at the forefront of the hyperbaric revolution by making it easier than ever for physicians and patients to access hyperbaric therapy.

We are dedicated to “Making hyperbaric technology more accessible, wherever you are.”

Learn More

Oxyhealth Vitaeris 320 HBOT Chamber: Everything You Need to Know!

Anti-Aging: OxyHealth’s Hyperbaric Oxygen Therapy Can Repair Telomeres

OxyHealth — The Best in Hyperbaric Oxygen Therapy (HBOT)

Optional Upgrades

OxyCool Cooler Box

• Effectively reduces the internal temperature by 15 degrees F
• Plug and play into your Oxyhealth chamber

Oxy Cool Manual

Oxygen Requirements & Configuration

For 2 ATA protocols, two 10 LPM oxygen concentrators are typically required. In some cases, individual needs may require increasing pressure up to 2.2 ATA, which is why we recommend adding the O₂ Boost for optimal performance.

For 3 ATA protocols, a third 10 LPM concentrator is required along with the O₂ Boost, bringing total oxygen flow to 30 LPM.

We work directly with OxyHealth Hyperbaric Chambers and Oxidation Technologies to ensure a seamless ordering, setup, and ongoing support process.

Oxygen Concentrator Options

Home Use

For home environments, we typically recommend the Pro-10 Oxygen Concentrator. It offers an excellent balance of performance and value and is well-suited for residential use in controlled, low-impact settings.
Learn more about the Pro-10 below.

Industrial & Clinical Use

For clinical, industrial, or higher-demand environments, we recommend the MAX-10 Oxygen Concentrator. Its rugged design and built-in air dryer make it ideal for continuous operation and long-term reliability. The MAX-10 is most commonly paired with our O₂ Pressure Boost for hyperbaric chamber use.
Learn more about the MAX-10 below.

TOX-MP Line — Self-Contained Systems for Larger Clinics

For clinics seeking a plug-and-play, self-contained solution, we offer the TOX-MP line. These systems integrate an oxygen concentrator, pump, and pressure booster into a single cabinet, delivering up to 50 PSI for continuous operation without pump shutdowns.

●TOX-40: Designed for 2 ATA

●TOX-60: Designed for 3 ATA

Each unit includes a built-in relief valve to maintain consistent pressure and prevent spikes.

Cabinet & Installation Options

●Mobile square cabinet with wheels

●Wall-mounted stacked configuration

●Optional stainless-steel finish for a clean, professional look

Vent plumbing options are available for customers looking to reduce heat and noise. For cabinet and installation options our Airpuria team is happy to assist with configuration and planning. Please contact our team today.

Oxygen Monitoring

For customers interested in tracking oxygen purity during treatments, the OXM-100H provides a clear, easy-to-read display. It can also be modified to send output signals for data logging and remote monitoring, making it ideal for clinical and research environments.

Pro-10 Concentrator

4.2 – 21 SCFH (2-10 LPM) oxygen production /embed/lPfRBo21pD0″ height=”497″ width=”884″>

More Information

MAX-10

The Max-10 Oxygen Concentrator will produce 21 SCFH (10 LPM) oxygen with a purity of 90-93% (nominal) at pressures up to 19 PSI. Turnkey oxygen concentrator requires only ambient air and electrical power for operation.

Note: This unit comes with a standard electrical power of 120 VAC, 60 Hz standard. This will automatically be used if not stated otherwise.

The MAX Series Oxygen Generators are perfect for industrial and commercial applications and delivers 90-93% purified O2. Max oxygen flow of 21 SCFH (10 LPM) at pressures up to 19 PSI.

Built in a lightweight turkey enclosure with an intetrated oil-less air compressor. Only ambient air and electrical power are required for operation. Produce oxygen at home and eliminate the oxygen cylinders forever!

The internal oil-less air compressor sits on 2 fans that help keep the operating temperature inside the box low. A filtered air intake on the front draws in fresh air for cooling while keeping dust and debris to a miniumum.

Note – if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.

Features:

• Self-Contained turnkey unit
• Lighweight Aluminum Enclosure – Provides simple and easy access for maintenance. Individual panels are removed with Phillips head screws.
• Advanced Engineering
• Low O2 purity alert – Built-in oxygen purity meter measures oxygen purity in real-time. An audible alarm, and indicator light alert of oxygen purities below 80%.
• Moisture trap – A unique feature of the MAX-series oxygen concentrators is an internal moisture separator installed on the compressed air line after the oil-less air compressor. This feature is standard and available only on the MAX-series oxygen concentrators. This allows the sieve beds on the oxygen concentrator to last longer with lower long-term maintenance.
• Oxygen Pressure Boost Option – Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can’t seem to keep the flow up when the pressure increases? The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there. On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available. A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber. The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.

Maintenance:

Maintenance of the MAX-series oxygen concentrator is simple rare and cost effective. Expect a long-life of the MAX oxygen concentrator if simple maintenance is followed.

To see these parts and how they are replaced check out the video imbedded in this page below.

Inlet air filter- Attached to the oil-less air compressor to filter incoming air. This filter should be replaced as needed (when dirty). check monthly in dirty/dusty environments, check quarterly in normal clean environments.

Sieve beds- House molecular sieve material that separates the oxygen from the nitrogen. This is replaceable as a full unit. This should be replaced every 2-years in normal environments.

Air CompressorLow O2 purity alert – Built Should be rebuilt every 8,000 hours of use. This can be rebuilt with a rebuild kit we offer, or a complete replacement compressor can be purchased very cost effectively.

Product Characteristics:

Typical Applications:

Manufacturing:

– Glass Work/Blowing

– Brazing/Sodering/Jewelry

– Thermal/Chemical Oxidation

Environmental:

– Ozone (Generator) Feed Gas

– Waste/Water Treatment

– Environmental Remediation

Additional:

– Fish Farming

– Aquaponics

– Hydroponics

What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.

Max-10 Oxygen Concentrator Video:

Downloads:

User Guide

More Information:
